MEP Design Support Services

 Benefiting from our long experience in the fields of Energy Conservation Systems,

 Energy Value Engineering and Green Buildings Certification,

 Greenfield also provides MEP Design Support Services for Consultants and  Contractors alike.

Our MEP Design Support Services are summarized below:

HVAC:

1)      Heat Load Calculations using the "Hourly Analysis Program" (HAP)

2)      Preparation of schematic HVAC designs

3)      Ventilation calculations

4)      Energy Value Engineering using the detailed dynamic model "Design Builder"

5)      Preparation of air conditioning and ventilation drawings

6)      BOQ and tender documents preparation

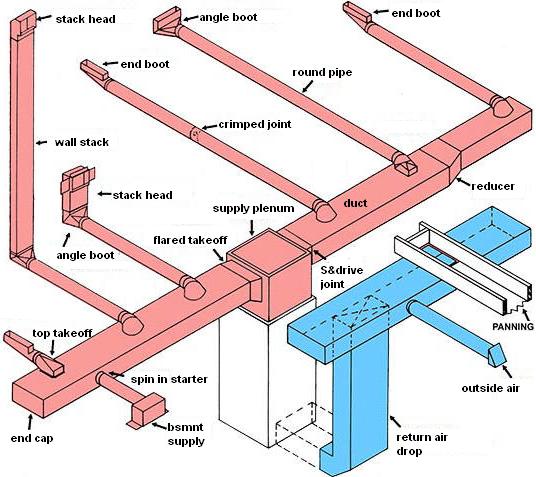

                 Example of Heat Load Calculations using HAP                                                         Example of  Schematic HVAC Designs

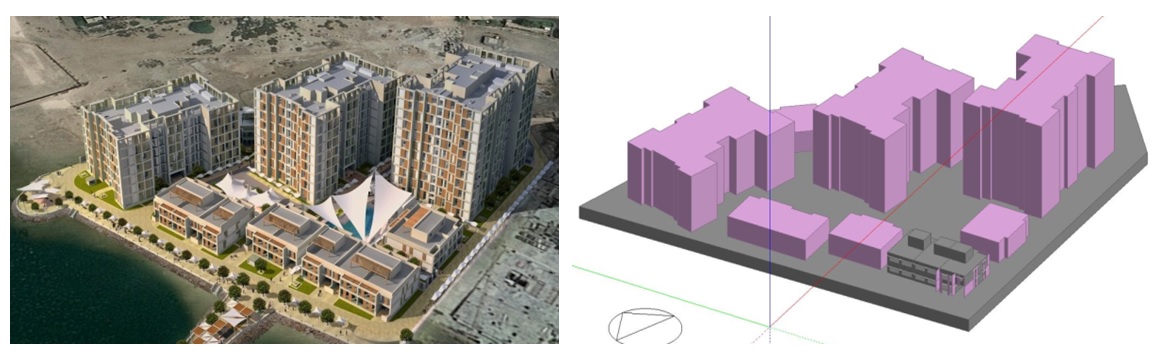

               Example of Detailed Dynamic Model using  "Design Builder"

Electrical:

1)      Electrical load calculations

2)      Preparation of schematic designs

3)      Preparation of electrical drawings

4)      BOQ and tender documents preparation

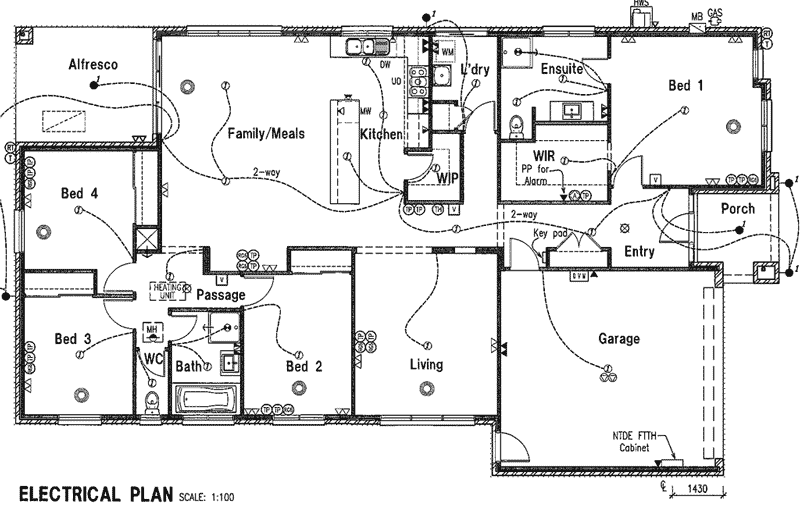

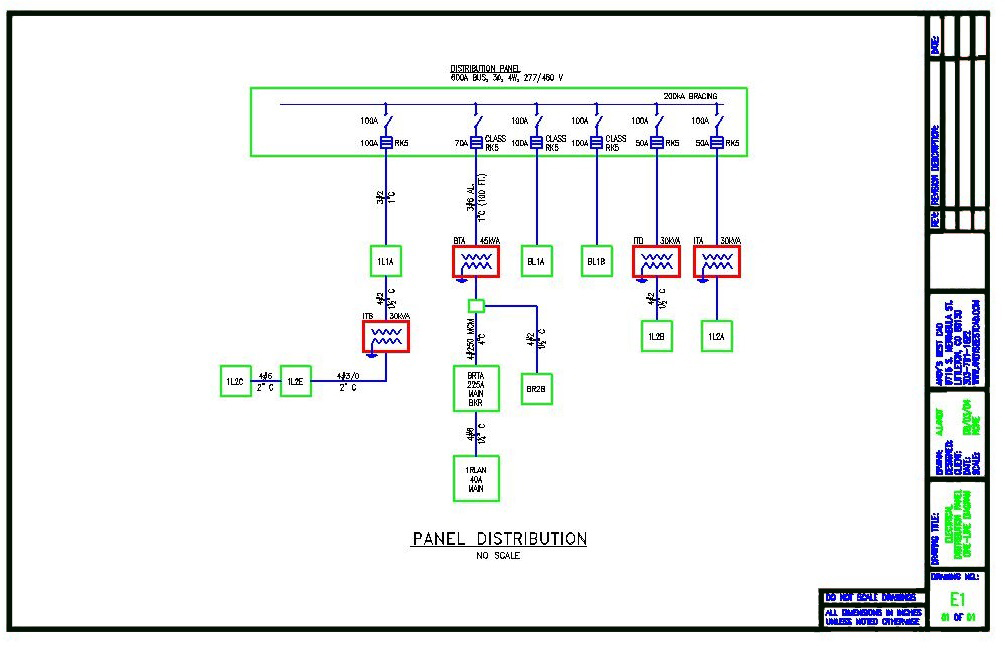

      Example of Electrical Load Calculations                       Example of Electrical Drawings                                Example of Schematic of  DB

Plumbing:

1)      Water supply and drainage systems calculations and design

2)      Hot water systems design

3)      BOQ and tender documents preparation

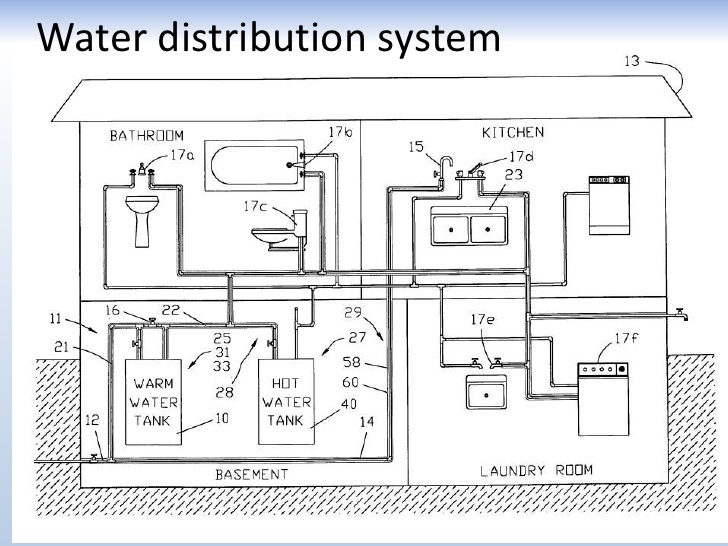

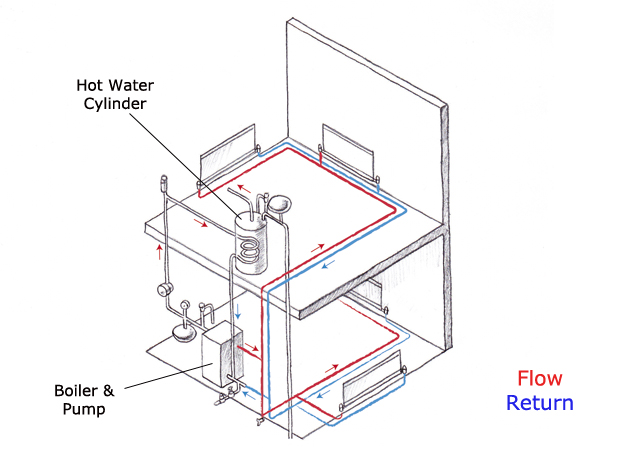

Example of Water Supply System                               Example of Hot water System Design

What makes us different from others?

Management:

We have highly qualified and experienced management which guides the team throughout the design process to achieve the best possible result at all times.

Team:

Our engineers are experienced in designing large and small projects and in full coordination with the management to achieve the desired goal. Our consortium team includes a range of talent, education and experience.

Library and Guidelines:

Our design team is equipped with the up-to-date resources in the form of design guidelines, research papers and other technical resources to deal with the most intricate designs.

Success at all times:

We design with complete understanding as needed by the Client so that the final design product is delivered within the time frame. Our satisfied Clients can assure you of our speed and accuracy in our design support projects.
